Features.

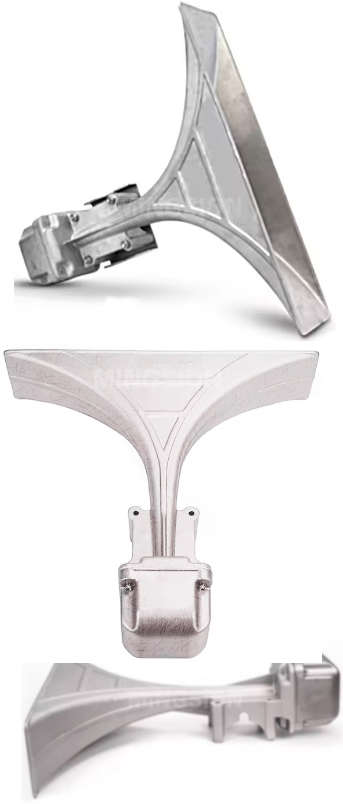

Sirene AlFar yang paling andal dan mumpuni untuk segala kondisi. Sirene AlFar memberikan perlindungan Peringatan Dini Darurat Banjir Bandang, Gempa Bumi, Tsunami, Tornado, Badai. Desain sistem amplifikasi canggih AlFar menembus atmosfer, memfokuskan gelombang suara dapat diterima ke masyarakat sekitar dengan menghasilkan tekanan suara yang jauh lebih padat dan kejernihan suara yang lebih tinggi dengan daya jangkauan yang lebih luas.
| Horns | Watts* | (30 m) 180° | @70 dB (C) | (30 m) 360° | @70 dB(C) |
|---|---|---|---|---|---|
| 2 | 250 | 109dB(C) | 600m(2000ʼ) | 103dB(C) | 410m(1370ʼ) |
| 4 | 500 | 115dB(C) | 730m(2400ʼ) | 106dB(C) | 450m(1480ʼ) |
| 6 | 1000 | 121dB(C) | 1500m(5000ʼ) | 115dB(C) | 730m(2400ʼ) |
| 8 | 1000 | 124dB (C) | 1800m(6000ʼ) | 118dB(C) | 850m(2800ʼ) |
| 12 | 1500 | 127dB (C) | 2300m(7550ʼ) | 121dB(C) | 1500m(5000ʼ) |
| 18 | 2500 | 130dB (C) | 3050m(10000ʼ) | 124dB (C) | 1800m(6000ʼ) |
| 24 | 3000 | 133dB(C) | 4100m(13500ʼ) | 127dB(C) | 2300m(7550ʼ) |
| 30 | 4000 | 135dB(C) | 5000m(16400ʼ) | 129dB(C) | 2900m(9500ʼ) |
| 36 | 4500 | 137dB (C) | 6200m(20300ʼ) | 131dB(C) | 3600m(11800ʼ) |

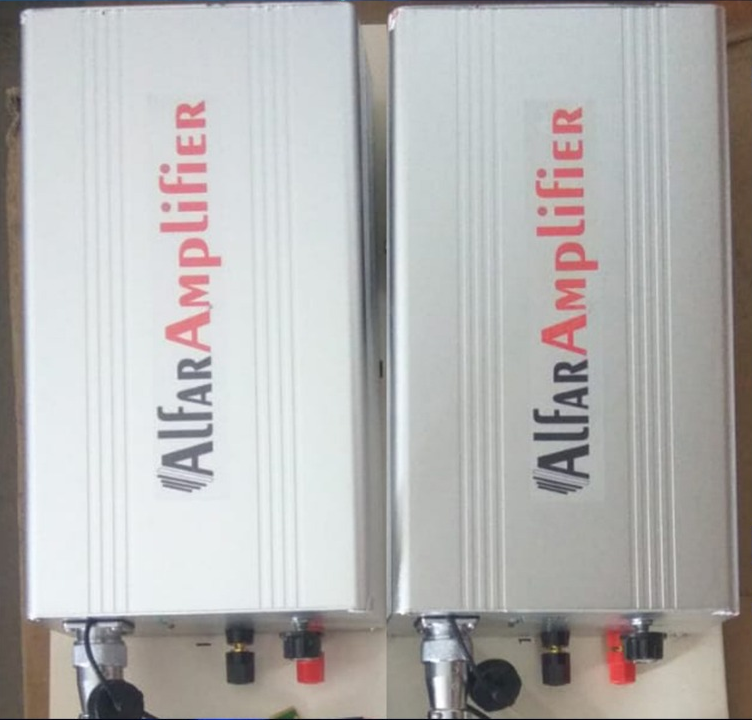

Amplifier ini dirancang sebagai modul plug-and-play. Amplifier modern dengan kategori class D ini dikenal sangat efisien dan maksimal untuk menghasilkan suara berkualitas tinggi. Dan juga pada tekanan suara tone nada yang dioptimalkan dan disesuaikan untuk driver audio outdoor. Dalam status standby, amplifier tidak memiliki konsumsi daya (0 A). Penggunaan satu unit amplifier dapat menunjang hingga 4 driver speaker audio MS-2000 DK. Penggunaan ini untuk memastikan sistem agar dapat memiliki masa life-time yang Panjang.
Technical Specifications
| Power Source | 11 ~ 24 VDC. |
|---|---|
| Purpose | Early Warning Outdoor |
| I/O Port | 1 x Audio 3.5mm, 1 x WS 20 Connector (waterproof), 1 set Banana plug. |
| Rate Output | 1800-Watt (bridge mode) |
| Output Power | 4 Ω : 1500 Watts, 8Ω: 800 Watt |
| Freq. Response | 50 Hz to 20 kHz |
| Harmonic Distortion | 0.0015 % (<1%) distortion corresponds to 15 ppm or 96.5 dBc |
| Impedance | 11Ω, 8Ω, 4Ω |
| Weight | ± 4.5 kg |
| Indicator LED | Power Source Status, Device Status, Failure Status |
Technical Specifications
| Control Support | Outdoor Notification Systems |
|---|---|
| Cabinet Types | Outdoor Box Polyester |
| Systems Box | Device Public Address (PA), Digital Signs, Networked Systems and batteries |
| Material | Polyester with min. 30% fiberglass, providing mechanical strength and impact resistance. |
| Protection Level | IP66, Corrosion Resistance |
| Custom | Fan, Door Sensor, Temp Sensor |
| Size | 500 (W) x 600 (H) x 200 (D) |
| Thickness | 1.2 – 1.5 mm |
| Custom | Fan, Door Sensor, Temp Sensor |

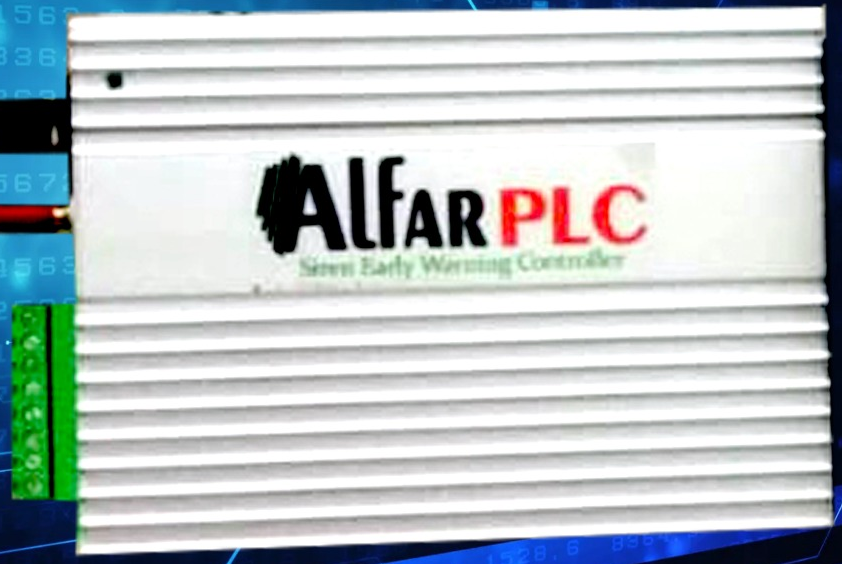

Technical Specifications
| Model | AlFar PLC Universal Integrations & Module |
|---|---|
| Material | Aluminum die-cast |
| CPU | Minimal Quad Core 64-bit |
| Storage | 4 GB SD Card Provided (Up To 8 GB Available) |
| I/O Port | 1x USB Type C, 2x Pitch KF2EDG, 1xLine Audio, 1xRJ-45. |
| Module Encoded | Dual-Tone Multi-Frequency (DTMF) |
| communication system | Full System Interface Over TCP/IP (LAN, WiFi), Radio UHV/VHF, Cellular, SAT. |
| Power | 5 – 9 VDC |
| Protection Power | Yes.High Load/Voltage, Short Circuit, Temp/humidity |
| Audio Warning Sound | 3 Type or more |
| Audio | ALC-662, FLAC, MP3, WAV,WMA, AAC, ALAC, ALS, OPUS, RAW, VOC, VOX, WEBM, CDA. |
| Operating Temp | 0°C~70°C(32° F to 158°F) |
| Protocol | TCP, UDP, ICMP, NTP, HTTP, HTTPS, FTP, SMTP, PPP, PPPoE, ZeroTier |

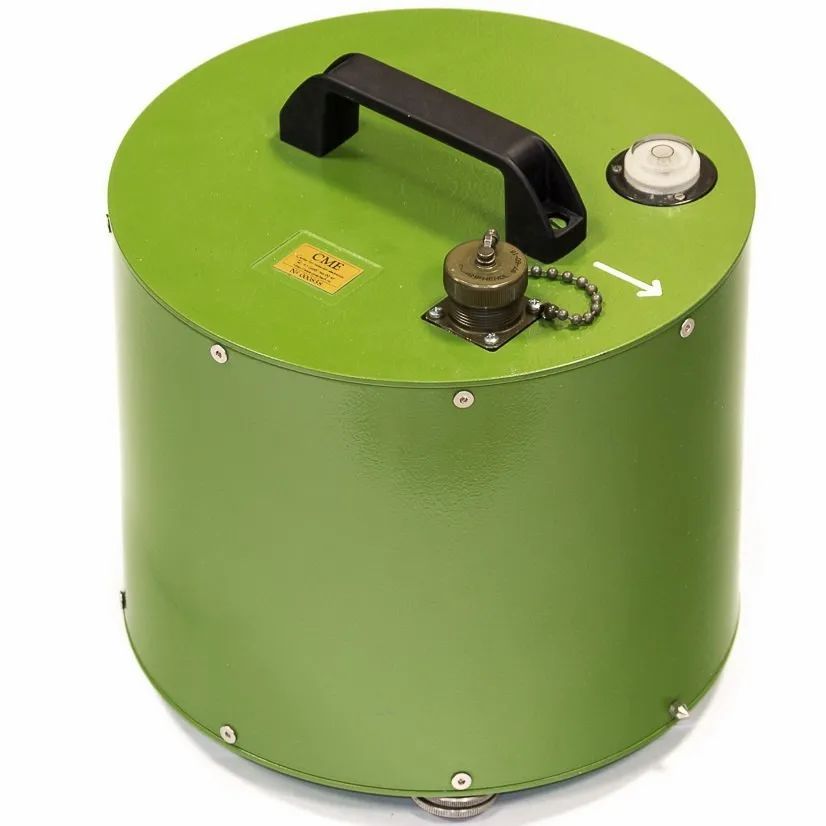

CME-6211 adalah broadband seismometer generasi lanjut dengan stabilitas tinggi terhadap perubahan tekanan atmosfer dan suhu, terutama pada frekuensi rendah.
| Model | CME-6211 |
|---|---|
| Frequency Range | 0.008 Hz (120 sec) – 50 Hz |
| Power | 30 mA |
| Weight | 12.2 kg |

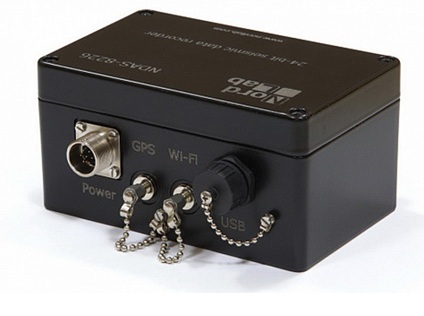

NDAS-8226 adalah digital seismic recorder berperforma tinggi untuk monitoring gempa bumi, mikroseismik, dan jaringan observasi permanen.
| Analog Input | 6 Channel Differential |
|---|---|
| Resolution | 24-bit High Precision ADC |
| Sampling Rate | Up to 1000 samples/sec |
| Dynamic Range | > 120 dB |
| Timing | Built-in GPS Synchronization |
| Communication | Ethernet, USB, Serial |
| Storage | Internal + External SD |
| Applications | Earthquake, Volcano, Microseismic |

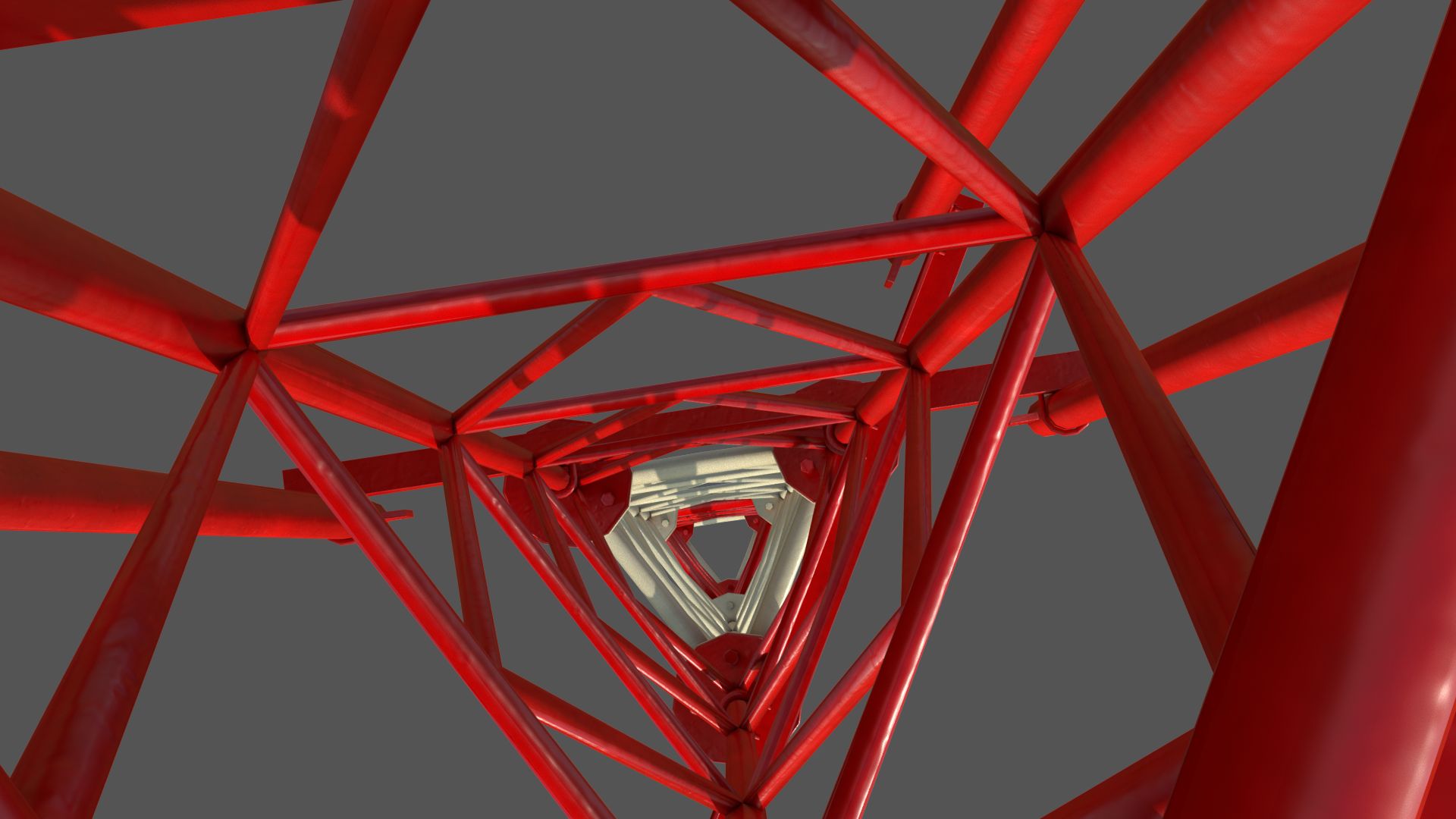

Struktur menggunakan baja galvanis HDG dengan kompartemen terintegrasi untuk baterai, PLC, dan modul sirine.
| Fitur | Eco | Pro | Industrial |
|---|---|---|---|
| Tinggi | 3-6m | 9-15m | 18-24m |
| Struktur | Monopole | Triangle | Octagonal |
| Angin | 100 km/h | 140 km/h | 180 km/h |
| Solar | 100WP | 200WP | 400WP |

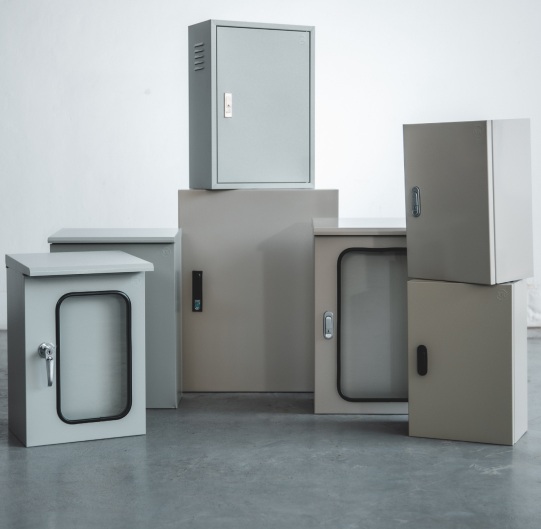

Sekolah • Desa
| Dimensi | 400×300×200 mm |
| Material | Mild Steel |
| IP Rating | IP65 |
| Controller | MCU IoT |
| Battery | 12–20Ah |
| Mounting | Wall Mount |
Smart City
| Dimensi | 600×400×250 mm |
| Material | Powder Coated Steel |
| IP Rating | IP66 |
| Controller | Compact PLC |
| Battery | 40Ah |
| Mounting | Pole Mount |
Industrial Zone
| Dimensi | 800×600×300 mm |
| Material | Stainless 304 |
| IP Rating | IP67 |
| Controller | Industrial PLC |
| Battery | 100Ah |
| Mounting | Tower Base |
Coastal • Offshore
| Dimensi | 1200×800×400 mm |
| Material | Stainless 316 Marine |
| IP Rating | IP67 + Salt Mist |
| Controller | Redundant PLC |
| Battery | 200Ah+ |
| Mounting | Concrete Pedestal |
Small Area Deployment
Smart City
Critical Infrastructure
High Risk Area
Sekolah • Desa
| Power Output | 30–50W |
| Coverage | 500m Radius |
| Material | ABS Weatherproof |
| IP Rating | IP65 |
| Mounting | Wall / Pole |
| Use Case | Village Alert |
Smart City
| Power Output | 100W |
| Coverage | 1 km Radius |
| Material | Aluminium Cast |
| IP Rating | IP66 |
| Audio | Siren + Voice |
| Mounting | Tower |
Industrial Zone
| Power Output | 200–400W |
| Coverage | 2–3 km Radius |
| Material | Marine Aluminium |
| IP Rating | IP67 |
| Audio | Multi Tone |
| Mounting | Tower Ring |
Coastal • Tsunami Zone
| Power Output | 800W+ |
| Coverage | 5 km Radius |
| Material | Stainless Marine |
| IP Rating | IP67 Salt Resistant |
| Audio | Voice + AI TTS |
| Mounting | Heavy Tower |
